Jinko Solar Panel Complete Hybrid Solar Energy System 15Kw 30Kw 20Kw 48V on Off Grid Hybrid Solar Panel Power System for Home

1 / 5

Jinko Solar Panel Complete Hybrid Solar Energy System 15Kw 30Kw 20Kw 48V on Off Grid Hybrid Solar Panel Power System for Home

Send Inquiry

Product Description

US Standard Split-Phase Solar System

✓ Two output modes: mains bypass and inverter output

✓ Four charging modes: Only Solar, Mains Priority, Solar Priority, and Mains & Solar hybrid charging

✓ Power saving mode to reduce no-load loss

✓ Intelligent variable speed fan for efficient heat dissipation

✓ Lithium battery activation by PV solar or mains

✓ Complete protections against short circuit, overload, and reverse protection

📍 Local Inventory: Spot goods available in local warehouses in Las Vegas and Phoenix USA.

Delivery to your door takes 2-6 days, and fast shipping is available throughout the US. Prices include customs duties. We provide a 15-year warranty on solar panels and excellent after-sales service.

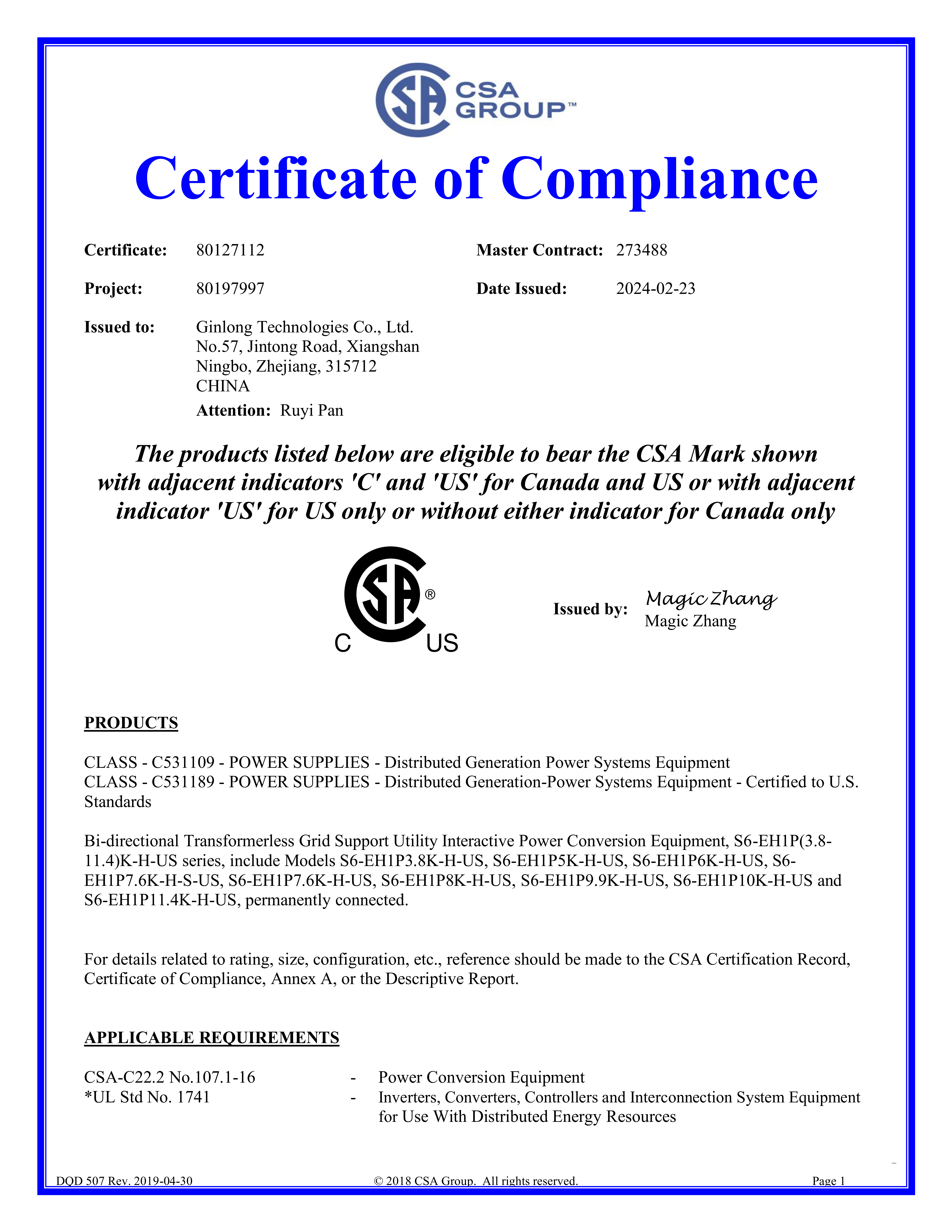

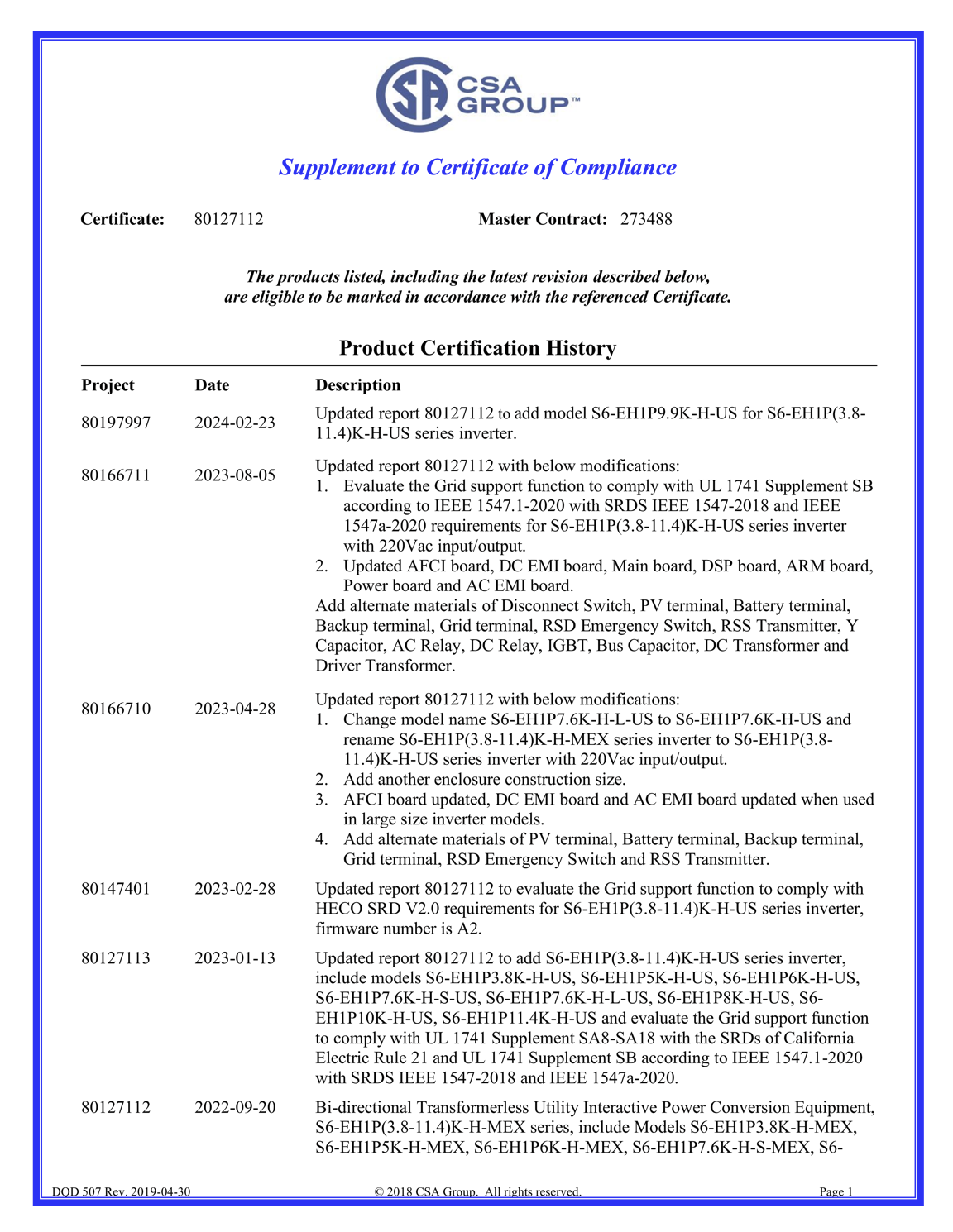

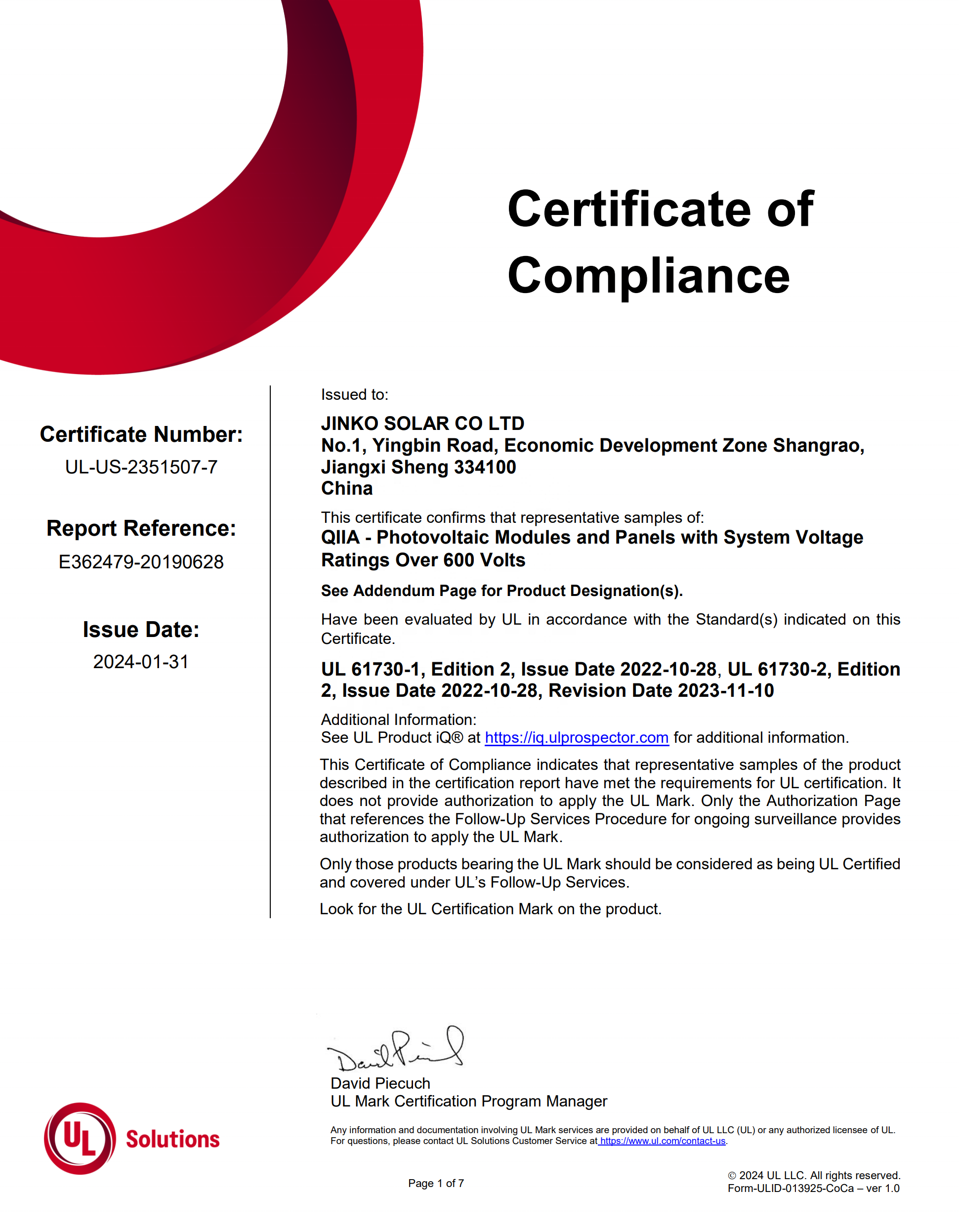

Compliance & Certification

Our solar systems meet US UL & CSA certifications and Department of Energy standards, enabling rapid system approval and installation.

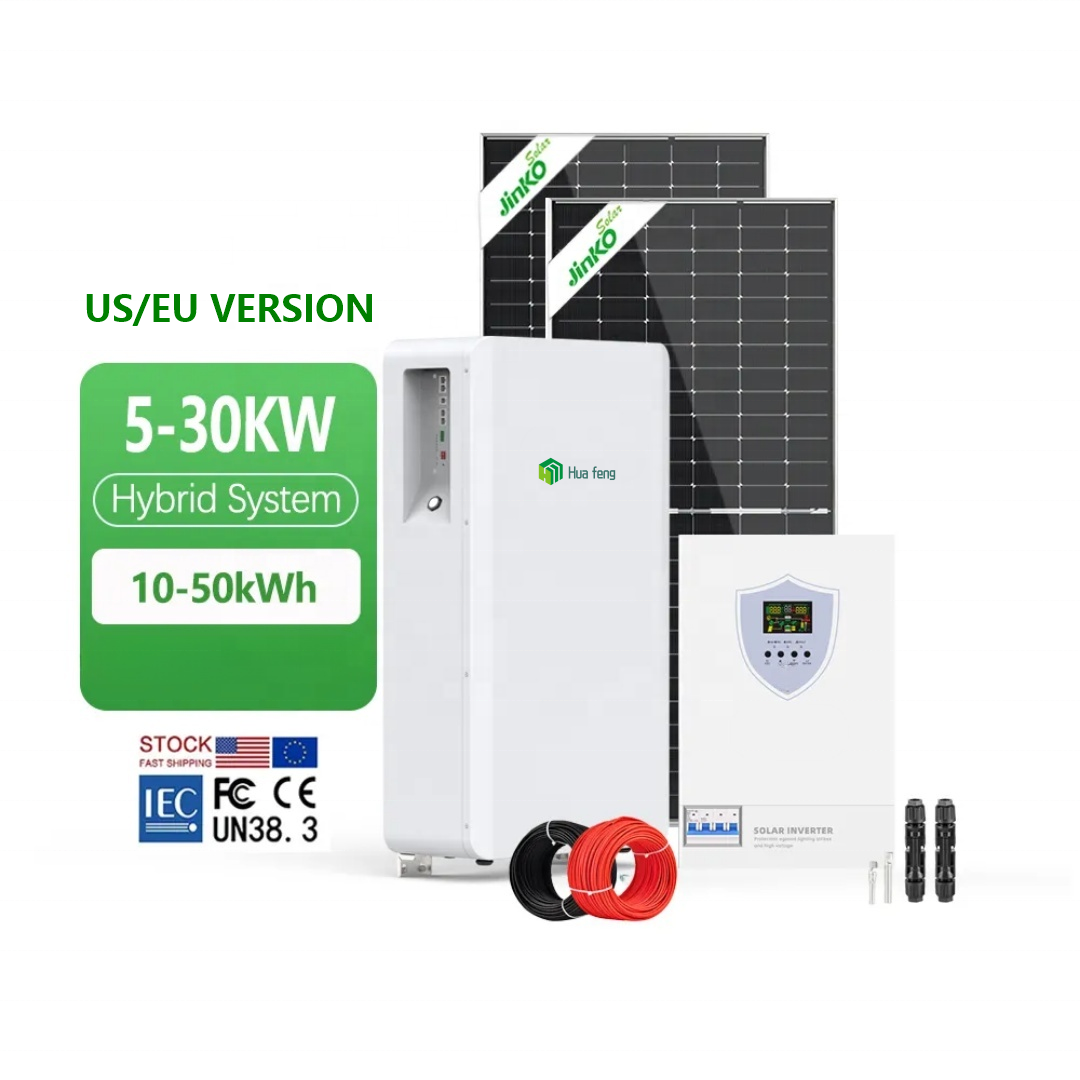

Residential Storage Solar System Components

10KW - 30KW System Components List
Model	Description	Typical Quantity
Solar Panel	Mono 590W solar panel	16 - 54 pieces
Hybrid Inverter	10KW - 15KW USA Standard	1 - 2 pieces
Lithium Battery	48V Lithium/Lead Acid Battery	1 set

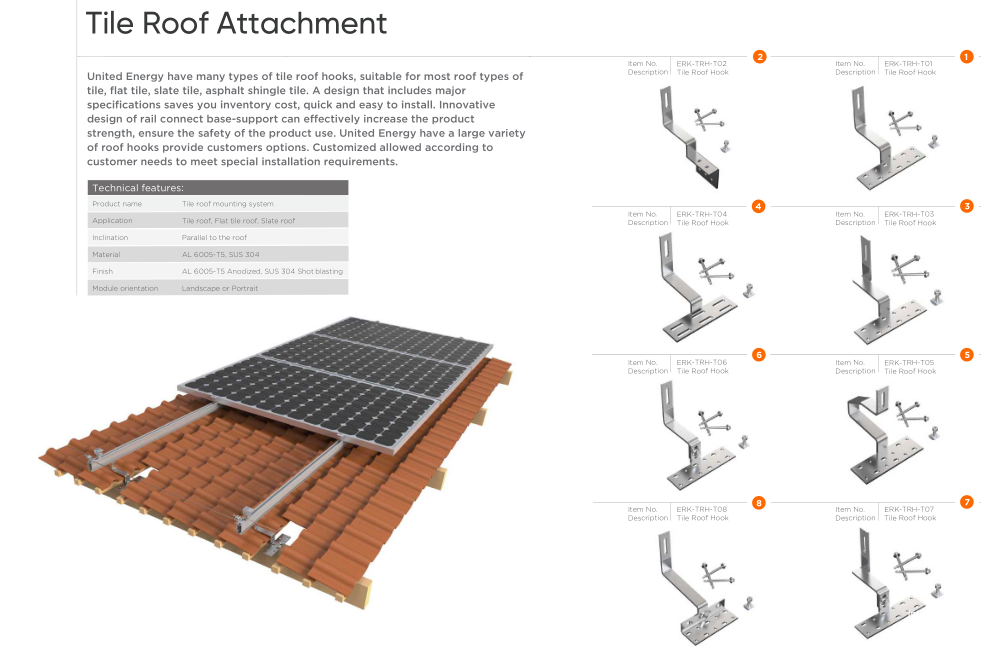

Mounting Support	Tile/Asphalt/Concrete Roof or Ground Mount	1 set

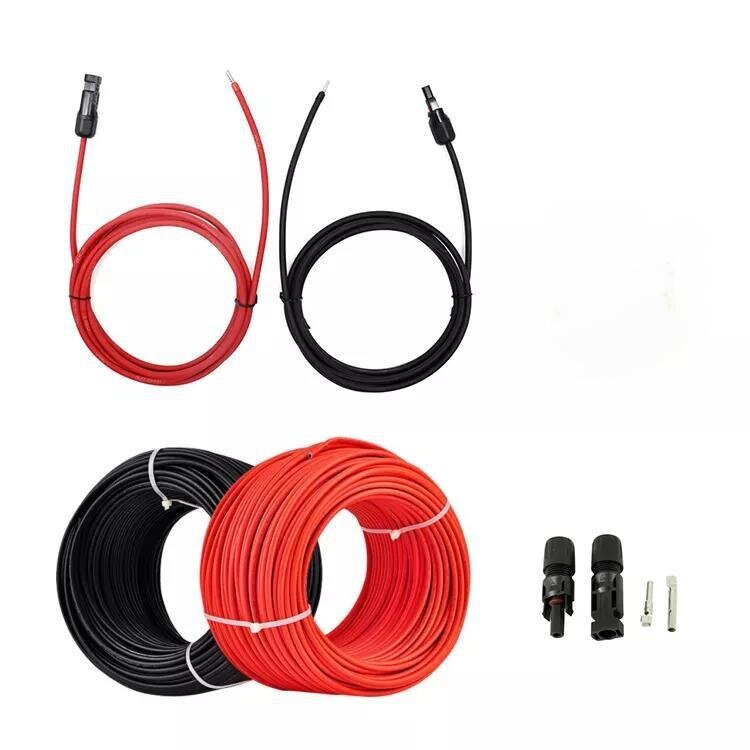

PV Cable	Single-core 4mm2 PV cable	100 - 200 meters
Connector	PV connector	20 pairs
Tools Bag	5 kinds of PV installation tools (Optional)	1 bag

Detailed Product Information

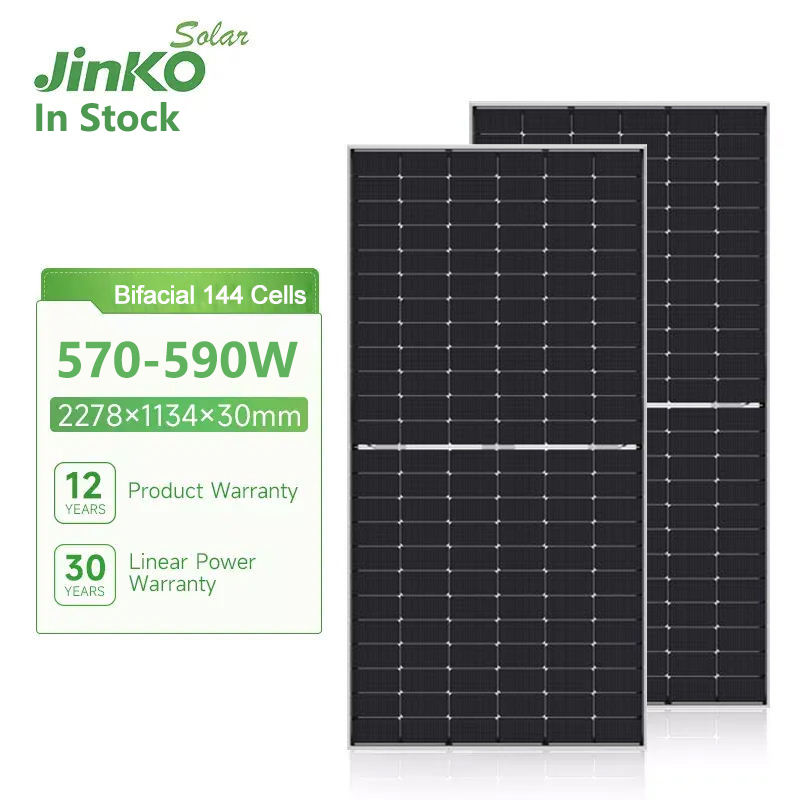

High Efficiency Solar Panel

Half Cut / Topcon Bifacial 590W

Peak Power: 590W
Voltage (Vmp): 42.06V | Current (Imp): 12.84A
Dimensions: 2278 x 1134 x 30mm
Weight: 26.9 kg

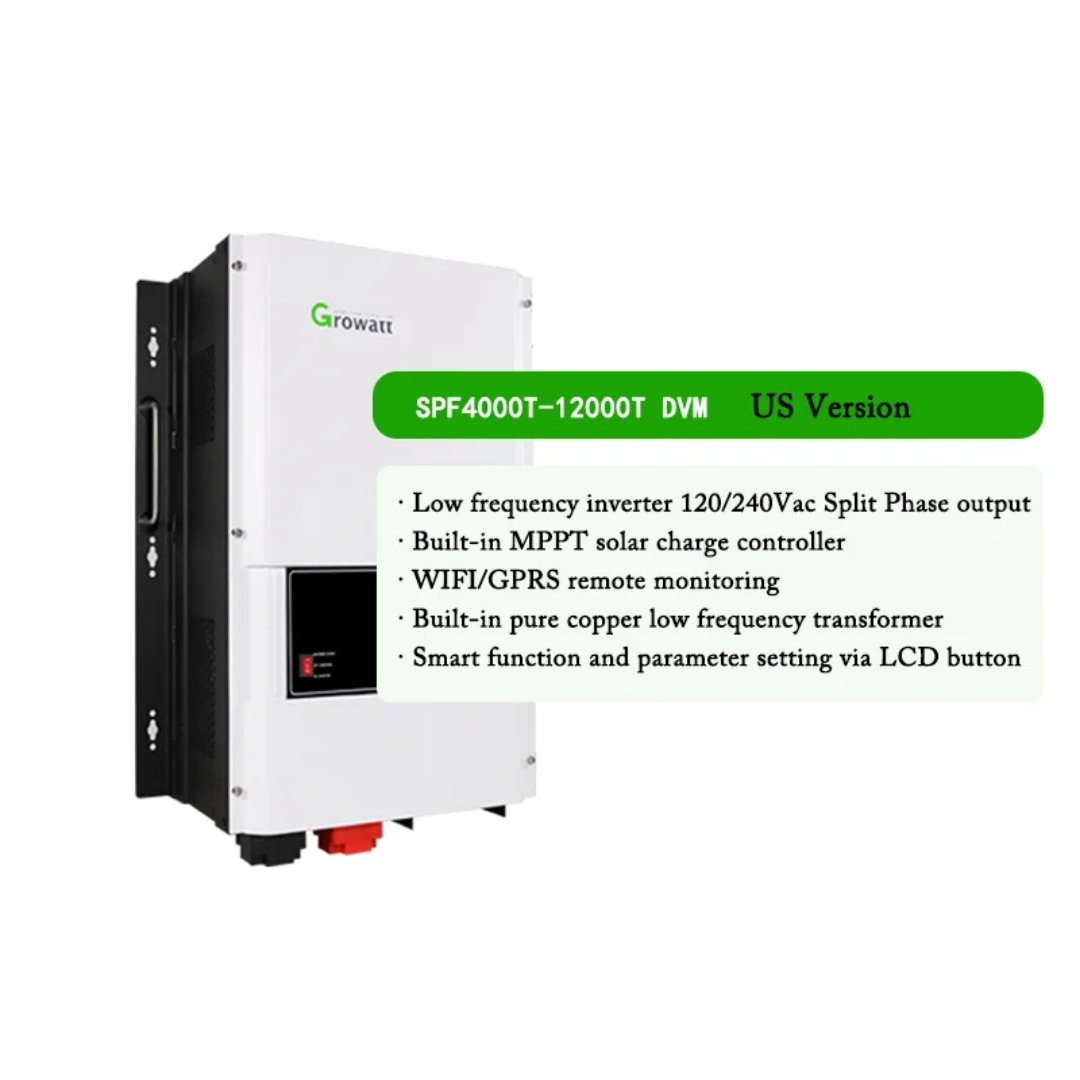

Split-Phase Hybrid Inverter

48V low voltage battery support with transformer isolation design. Features 6 time periods for charging/discharging. Max charging/discharging current of 240A.

Standards: UL 1741:2010, CSA C22.2#107.1

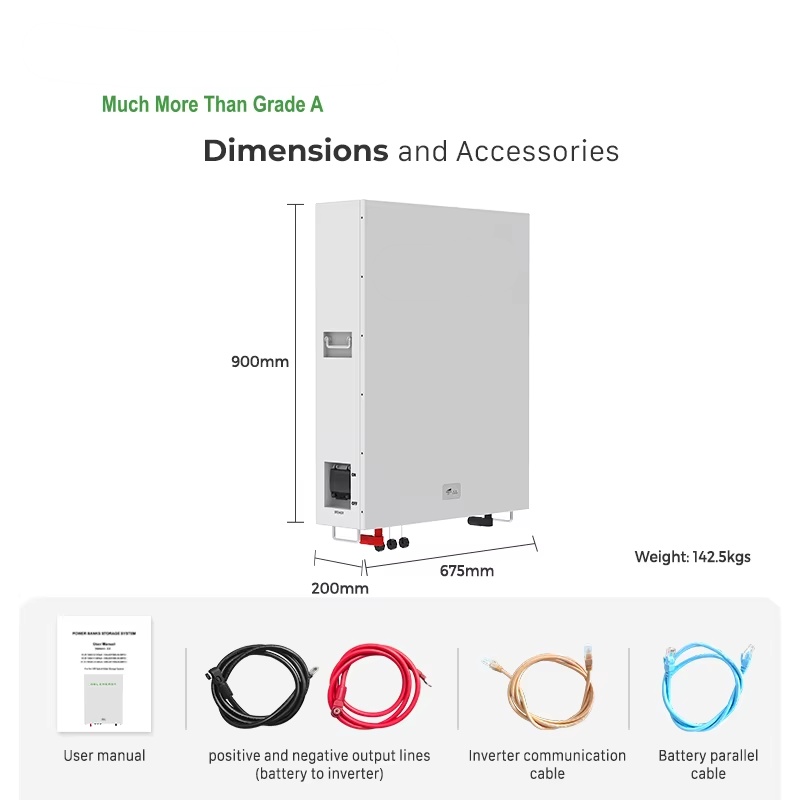

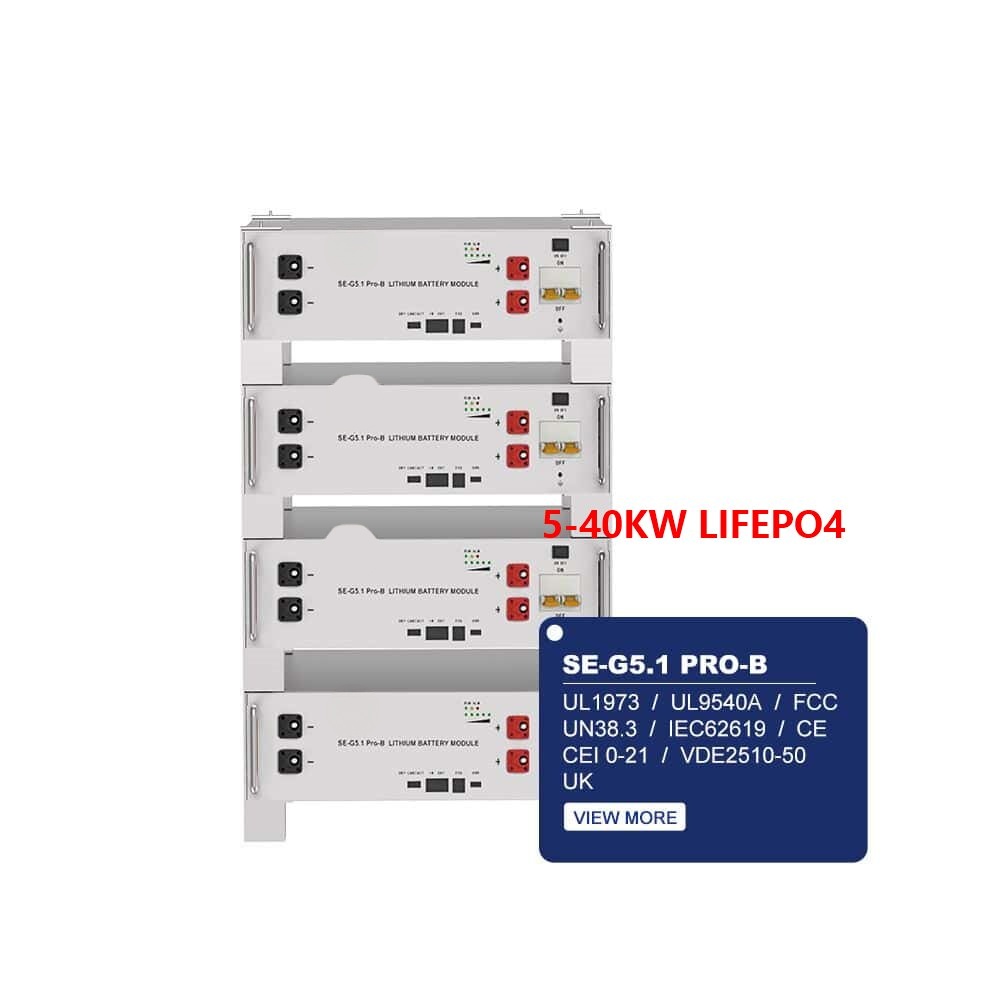

LiFePo4 Battery Storage

Stackable / Wall Mounted

15-20 years design life (6000+ cycles)
Built-in high quality BMS for cell protection
Scalable modular design
Compliance: UL 9540:2023

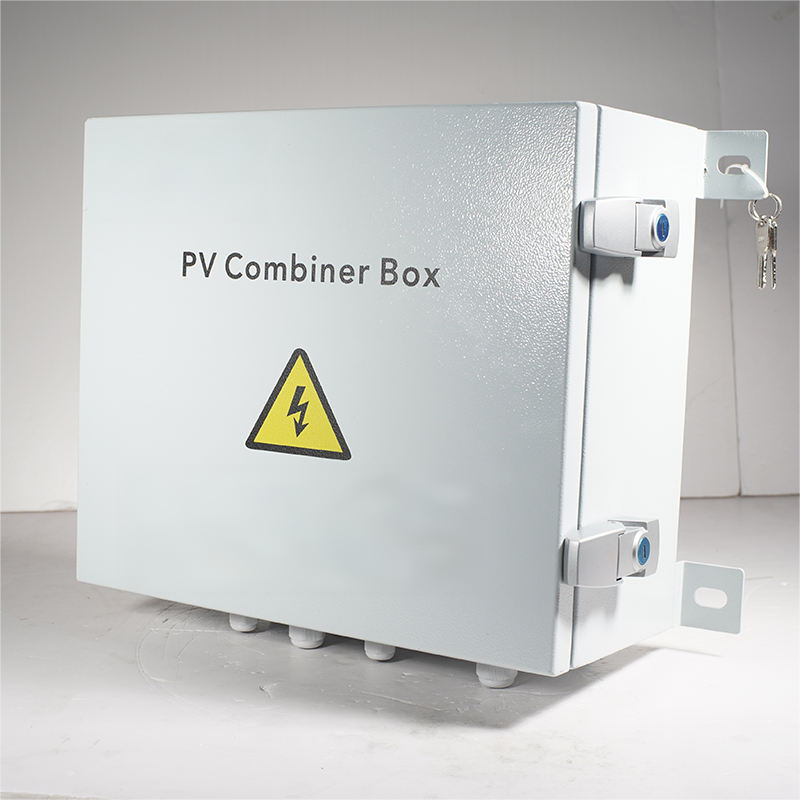

Accessories & Tools

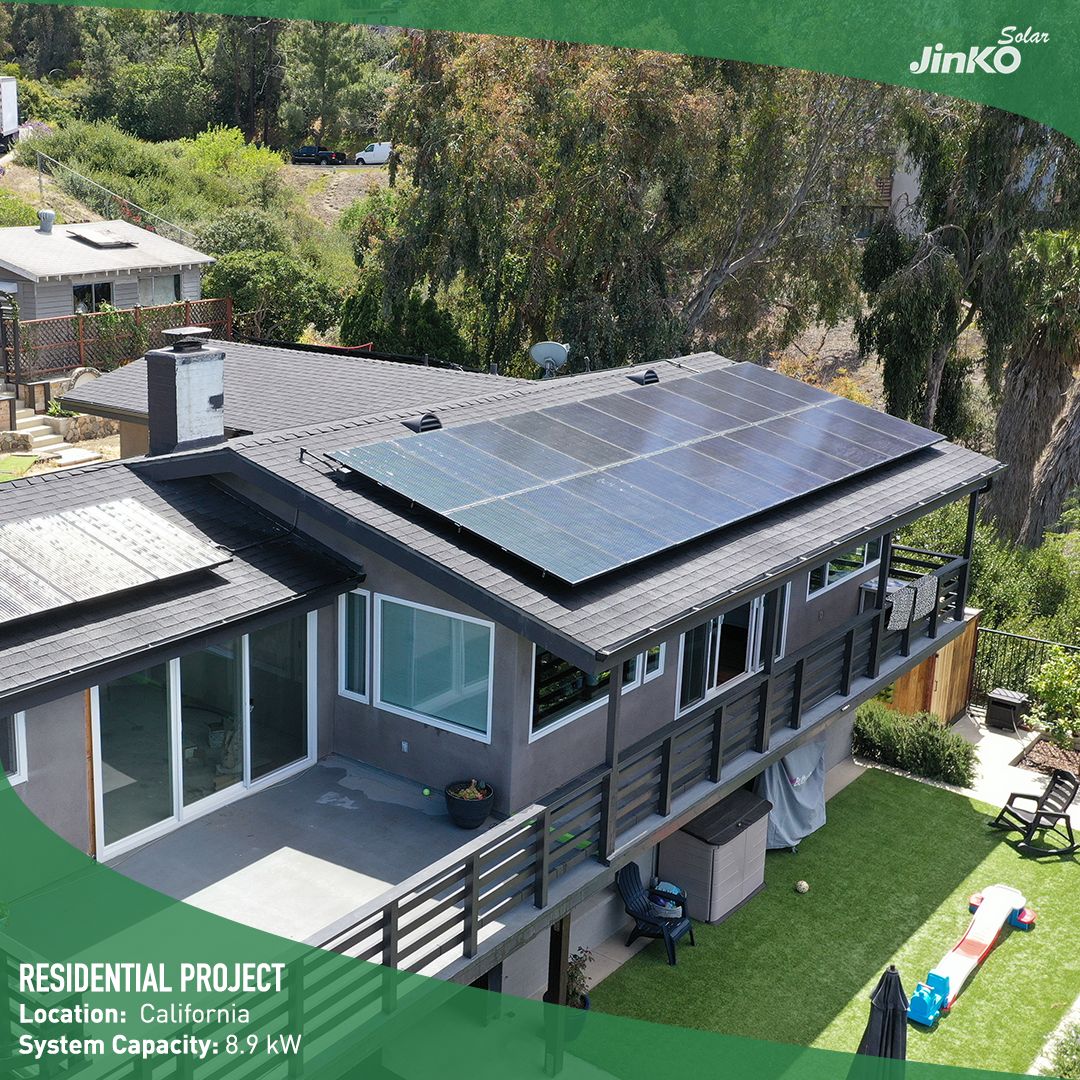

Successful Projects

Our solutions have been implemented in various large-scale and residential projects across North America.

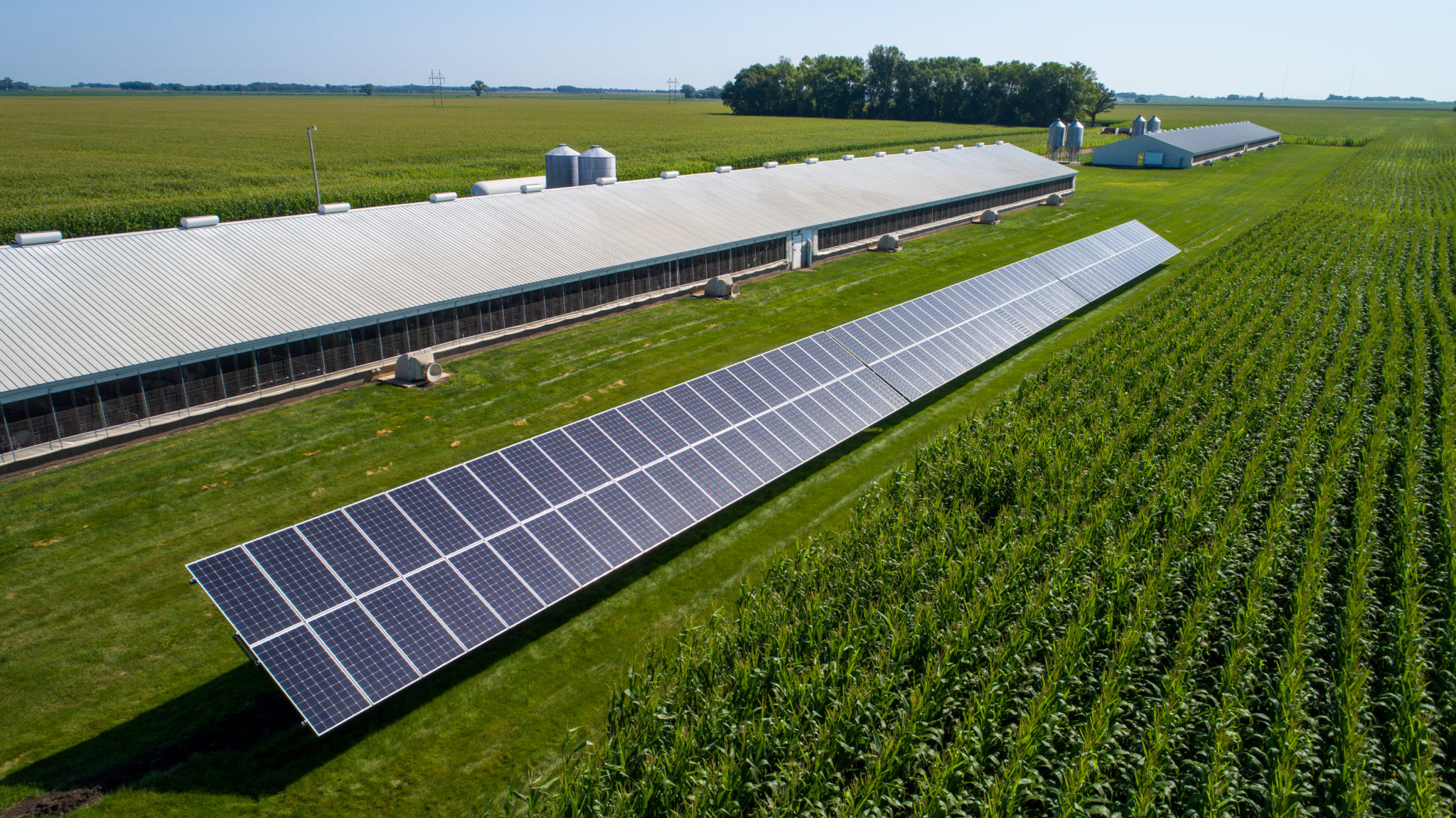

200kW farm project in California USA + Air conditioning system
1.5MW public utility project in Quebec Canada
2MW grid-connected industrial project

Frequently Asked Questions

❓ 1. Do you have local warehouses in the US?

Yes, we have warehouses in Las Vegas and Phoenix. Local delivery takes approximately 2-6 days to your door.

❓ 2. What size solar system is needed for a house?

Normally a 5-10kW solar system is sufficient for home use, depending on the specific power consumption of the household.

❓ 3. How long do solar panels last?

Solar panels are designed to last between 20 and 30 years. Well-made panels may even last up to 40 years.

❓ 4. What is the lifespan of a solar inverter?

A typical hybrid inverter lasts about 10 to 15 years. Standard warranties are usually 5 years with options to extend.

❓ 5. Is 10 kW enough to run a house?

A 10kW system can generate roughly 1500kWh/month under 5 peak sunshine hours. Efficiency depends on your actual monthly consumption.

❓ 6. Can I use a car battery instead of a solar battery?

While possible, it is not recommended. Car batteries are not designed for deep discharge and will not last long in solar applications.
